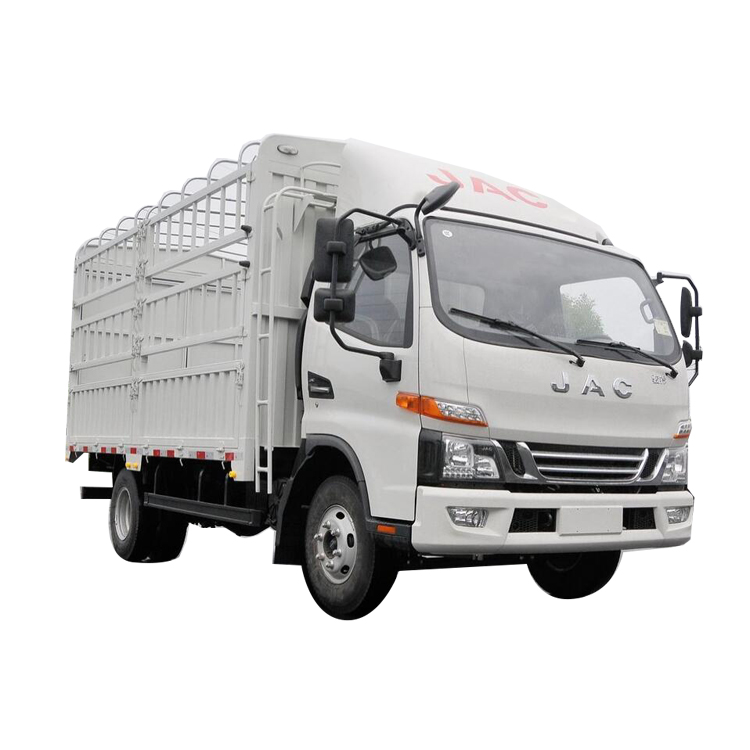

Name | van truck |
Overall dimension | 5995MM*2400MM*3300MM |
Van dimension | 4180MM*2300MM*2030mm |
Gross weight | 4290kg |
Curb weight | 2600kg |
Max payload | 1500kg |
Chassis specifications | |
Chassis brand | JAC |
Drive type | Left hand drive |
Drive wheel | 4X2 |
Transmission | Manual |
Cab | 3 passengers |
Tire | 7.50R16LT 6PR |
Front/rear tread | 1695mm/1720mm |
Front/rear suspension | 1110mm/1587mm |
Wheelbase | 3308mm |
Approach/departure angle | 22°/18° |
Leaf spring number | 9/9+7 |
Engine | yunnei |
Emission | Euro 5 |
Displacement | 2977ml |
Horse power | 156hp |
Max speed | 95km/h |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | |
1.The above mentioned data is for your reference only. | |
2.The detailed specification will be subject to our final confirmation. |
