| brand | QI LIN |

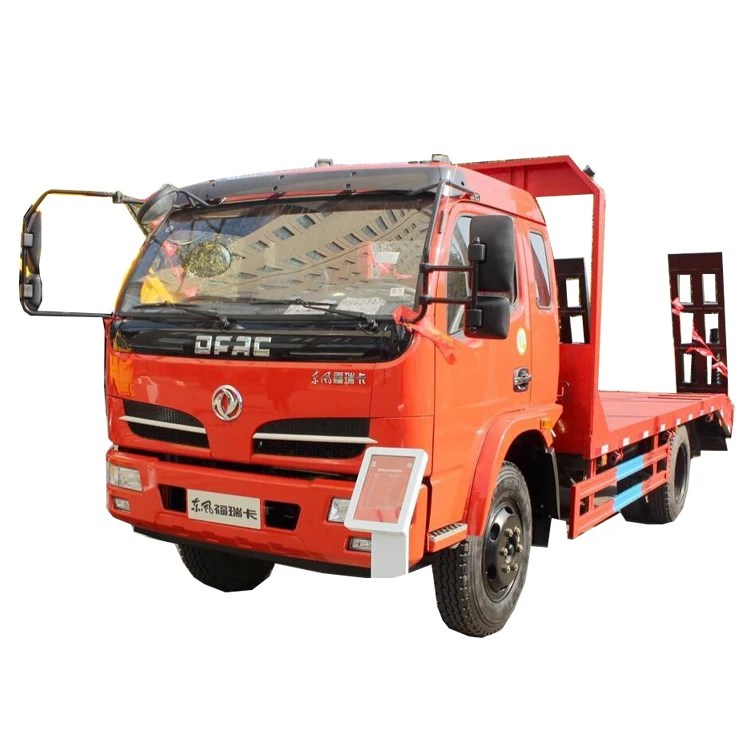

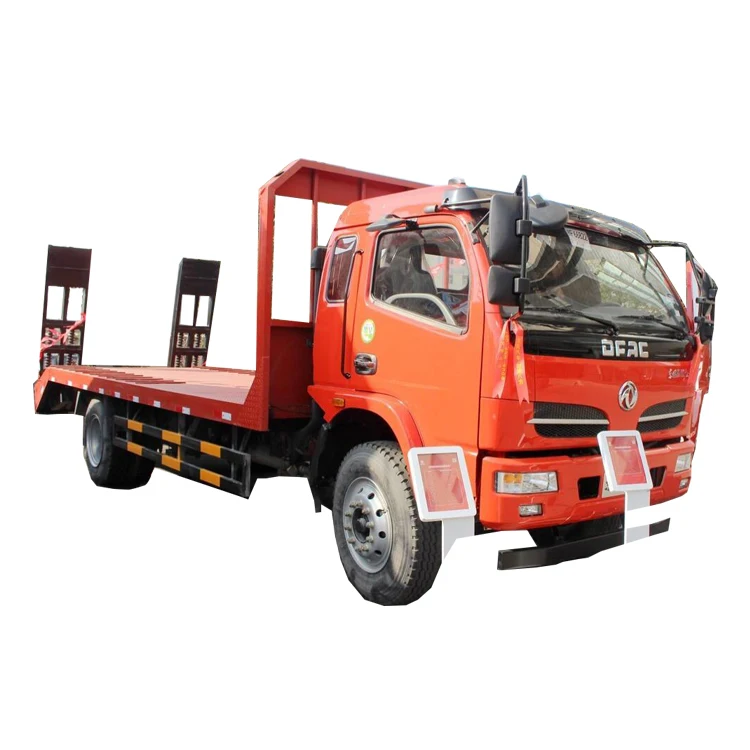

| name | Low bed truck |
| model | QLG5140TDP |
| overall dimension | 7875*2310*2800 |
| total weight | 14060 |
| payload | 7995 |
| drive type | Left/right hand drive(optional) |
| drive wheel | 4*2 |
| tire | 8.25R20 |
| front/rear tread | 1738/1650 |
| front/rear suspension | 1200/2625 |
| wheelbase | 4050 |
| leaf spring number | 12/12+9 |
| engine | 4DX23-140E3 |
| emission | Euro 3 |
| displacement | 3857 |
| horse power | 143 |
| maximum output | 105 |
| fuel type | diesel |
| Electrical system | 24 voltage, 7 wire harness, LED lights |
| painting | with shot blasting and 4 layers painting, color is optional. |
Remark
1.The above mentioned data is for your reference only.
2.The detailed specification will be subject to our final confirmation.
