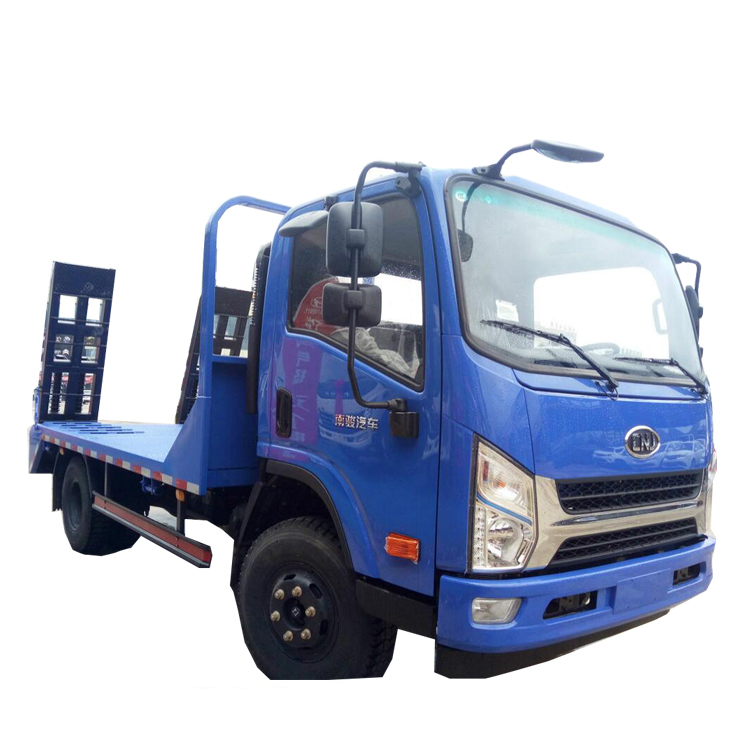

| brand | QI LIN |
| name | low bed truck |
| model | QLG5040TDP |
| overall dimension | 5995*2350*2530 |
| total weight | 4495 |
| payload | 745 |
| drive type | Left/right hand drive(optional) |
| drive wheel | 4*2 |
| tire | 7.50R16 6PR, 8.25R16 6PR, 7.00R16LT 8PR |
| tire number | 6 |
| front/rear suspension | 1190/1405 |
| wheelbase | 3400 |
| leaf spring number | 9/10+8, 3/9+7 |
| engine | YN38CRE1 |
| emission | Euro 3 |
| displacement | 3760 |
| horse power | 129 |
| maximum output | 95 |
| fuel type | Diesel |
| electrical system | 24 voltage, 7 wire harness, LED lights |
| painting | with shot blasting and 4 layers painting, color is optional. |
Remark
1.The above mentioned data is for your reference only.
2.The detailed specification will be subject to our final confirmation.
