PRODUCTS
brand | QI LIN |

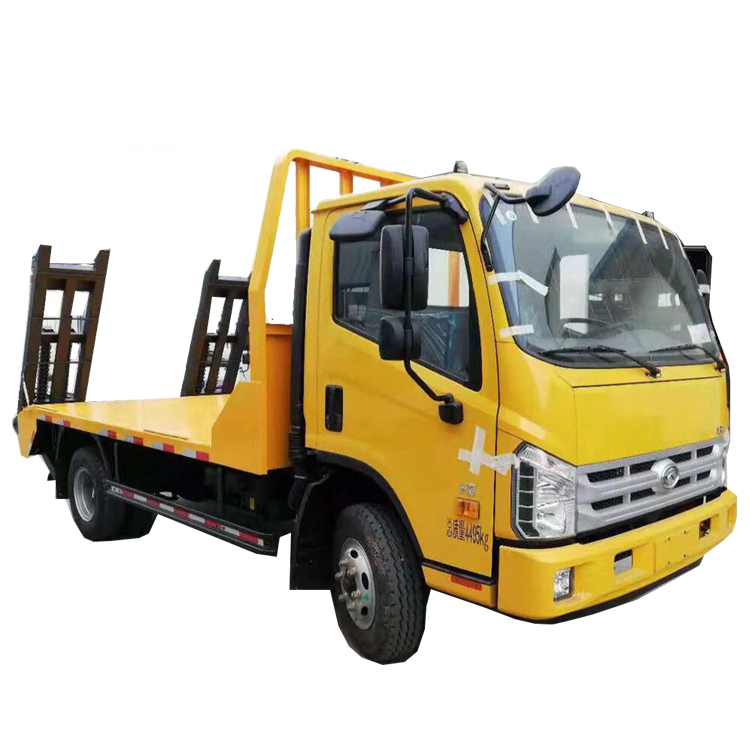

name | low bed truck |
model | QLG5043TDP |
overall dimension | 5995*2310*2670 |
total weight | 4495 |
payload | 245 |
drive type | left/right hand drive |
drive wheel | 4*2 |
tire | 7.50-R16 6PR, 7.50R16 6PR, 8.25-16 6PR, 8.25R16 6PR |
tire number | 6 |
front/rear suspension | 1150/1485 |
front/rear tread | 1715/1630 |
wheelbase | 3360 |
leaf spring number | 8/10+6,4/10+6 |
engine | YN38CRE1 |
emission | Euro3 |
displacement | 3760 |
horsepower | 129 |
maximum output | 95 |
fuel type | diesel |
electrical system | 24 voltage, 7 wire harness, LED lights. |
painting | with shot blasting and 4 layers painting, color is optional. |
Remark
1.The above mentioned data is for your reference only.
2.The detailed specification will be subject to final confirmation.
