Brand | QI LIN |

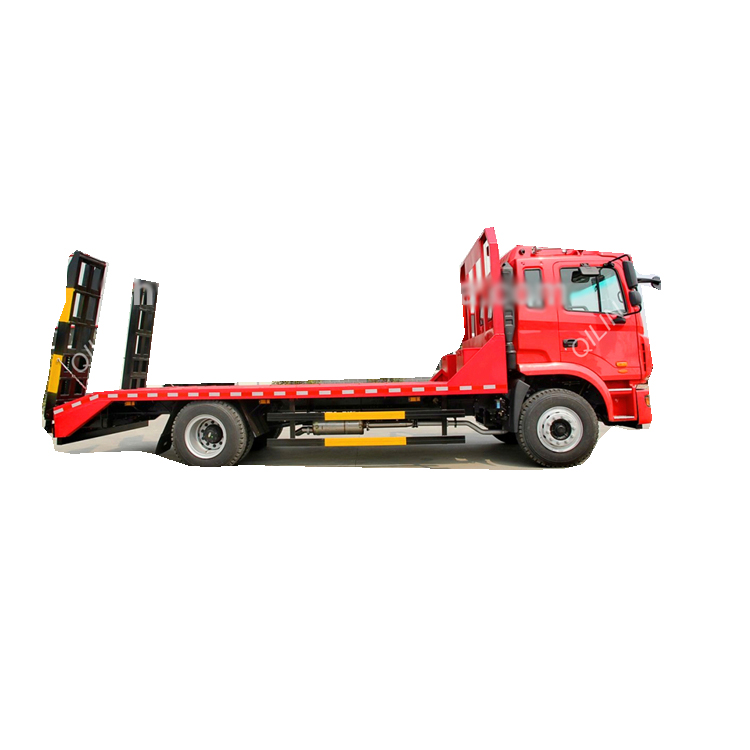

Name | Low bed truck |
Model | QLG5161TDP |
Overall dimension | 8680mmX2495mmX3300mm |
Payload platform length | 5000mm |
Rear ramp length | 700mm |
Gross weight | 15600kg |
Curb weight | 8100kg |
Max payload | 7305kg |
| |
Chassis brand | Dongfeng/Foton/JAC/Yuejin(optional) |
Drive type | Left/Right hand drive(optional) |
Drive wheel | 4X2 |
Transmission | Manual,7 forward gears,1 backward gear. |
Cab | 3 passengers |
Tire | 9.00R20 16PR/6pcs |
Axle | 5600kg/10000kg payload/2pcs |
Front/rear tread | 1830mm/1810mm |
Front/rear suspension | 1530mm/2450mm |
Wheelbase | 4500mm |
Approach/departure angle | 18°/12° |
Leaf spring number | 9/9+7 |
Engine | Commins/Yuchai/Chaocha/Weichai(optional) |
Emission | Euro 2/3/4/5(optional) |
Displacement | 6490ml |
Horse power | 180hp |
Braking system | With ABS system |
Max speed | 100km/h |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Painting | With shot blasting and 4 layers painting,color is optional. |
| |
1.The above mentioned data is for your reference only. | |
2.The detailed specification will be subject to our final confirmation. |
