Name

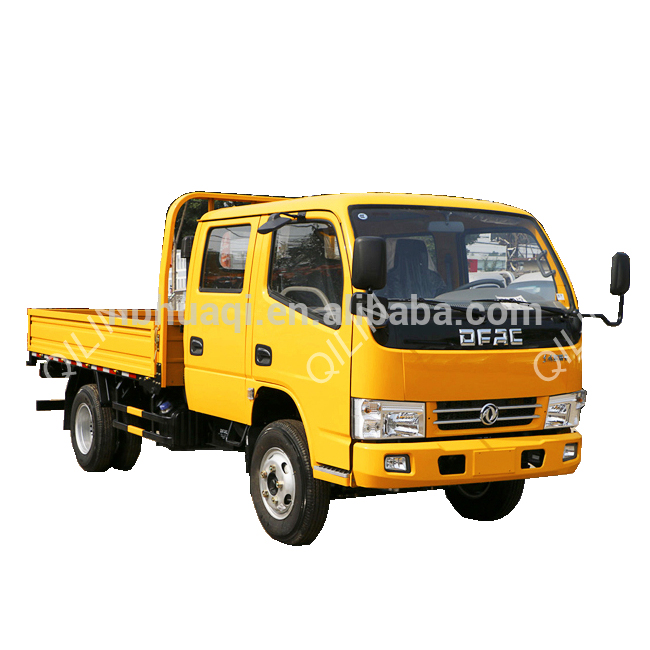

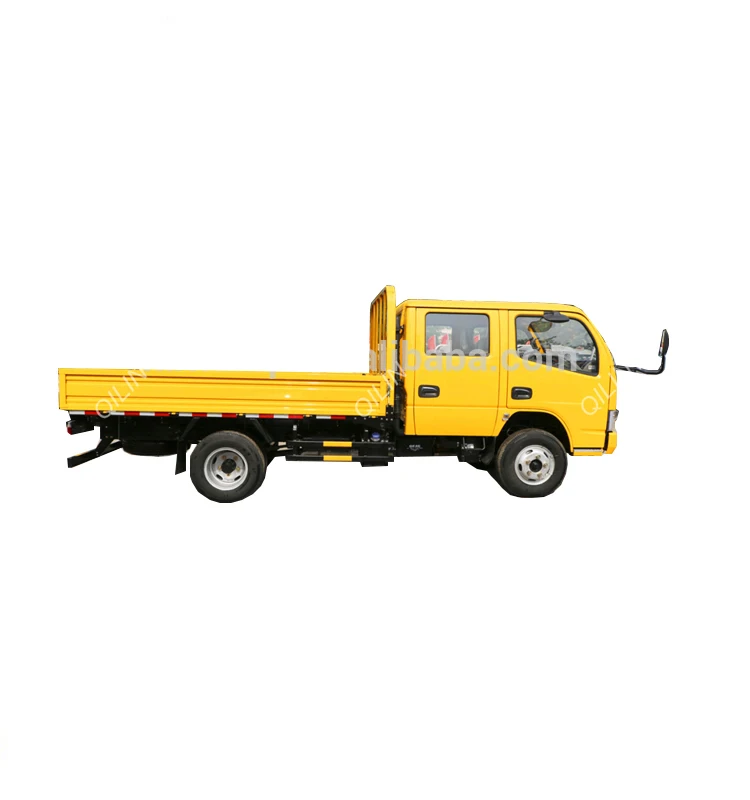

Side wall truck

Model

QLG5041XZH

Overall dimension

5995mmX1980mmX2260mm

Van dimension

3270mmX1880mmX400mm

Gross weight

4240kg

Curb weight

2420kg

Max payload

1430kg

Chassis specifications

Chassis brand

Dongfeng/Foton/JAC/Yuejin etc.(optional)

Drive type

Left/Right hand drive(optional)

Drive wheel

4X2

Transmission

Manual,5 forward gears,1 backward gear.

Cab

Double row,5 passengers

Tire

7.00R16 8PR/6pcs

Front/rear axle payload

1700kg/2540kg

Front/rear tread

1506mm/1466mm

Front/rear suspension

1032mm/1663mm

Wheelbase

3300mm

Approach/departure angle

19°/15°

Leaf spring number

8/9+5

Engine

Commins/Yuchai/Chaochai/Wuling etc.(optional)

Emission

Euro 2/3/4/5(optional)

Displacement

2545ml

Horse power

115hp

Braking system

With ABS system

Max speed

95km/h

Fuel type

Gasoline

Electrical system

24 voltage,7 wire harness,LED lights.

Painting

With shot blasting and 4 layers painting,color is optional.

Remark

1.The above mentioned data is for your reference only.

2.The detailed specification will be subject to our final confirmation.
