Brand | QI LIN | ||

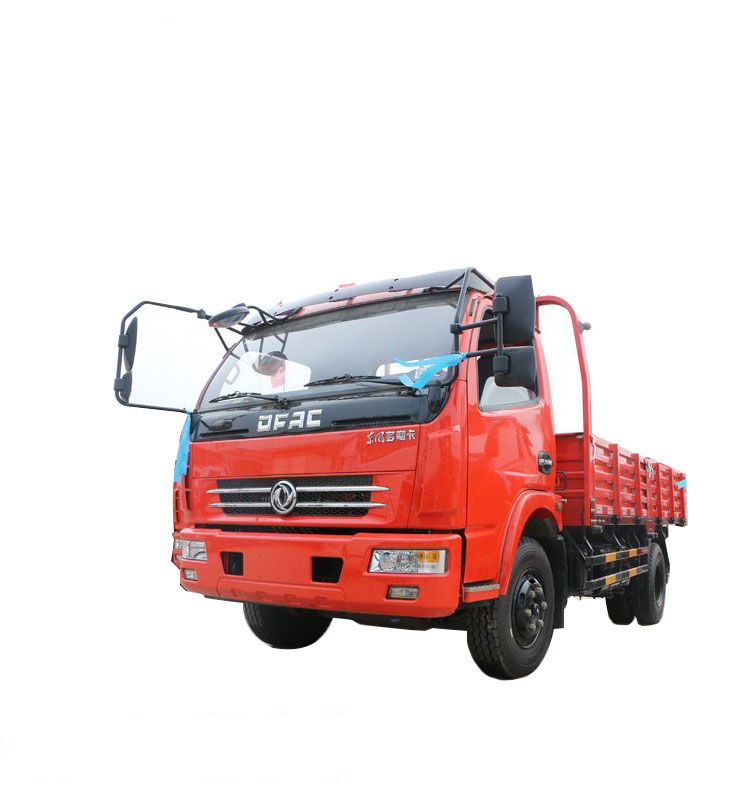

Name | lorry truck | ||
Model | EQ1041S8BD2 | ||
Overall dimension | 5995MM*2550MM*2490MM | ||
Van dimension | 4170MM*2300MM*550MM | ||
Gross weight | 4495KG | ||
Curb weight | 2550kg | ||
Max payload | 5-8TON | ||
Chassis brand | FOTON /DONGFENG optional | ||
Drive type | Left/right hand drive (optional) | ||
Drive form | 4X2 | ||
Transmission | Manual,8forward gears,2backward gear | ||
Cab | single row cab ,3 passengers ;with air-condition | ||
Tire | 7.50R16 /6pcs 8.25R16 8PR | ||
Rear axle speed ratio | 4.875 | ||
Air cylinder | 4 | ||
Wheelbase | 3300mm | ||
Fuel type | diesel | ||
Engine model | YC4S150-33 | ||
Engine type | Vertial type;in-line engine;water -cooling;four-stroke | ||
Displacement | 3.767ML | ||
Rated power | 110KW/h | ||
Horse power | 150HP | ||
Torque | 500N.m | ||
Max torque rotate speed | 1300-1800rpm | ||
Braking system | Air brake,ABS optional | ||
Electrical system | 24 voltage,7 wire harness,LED lights | ||
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||
