Brand | QI LIN | ||

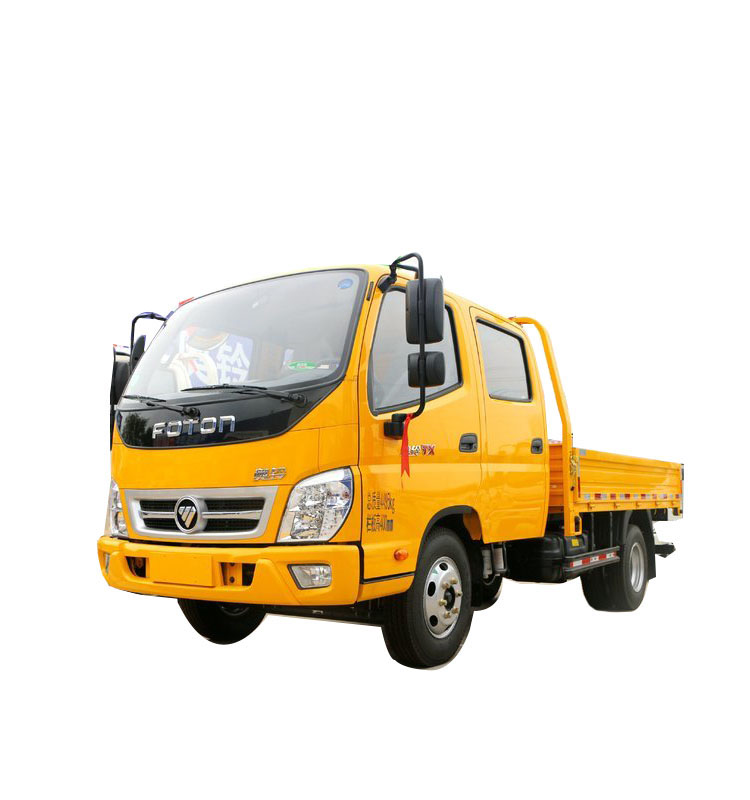

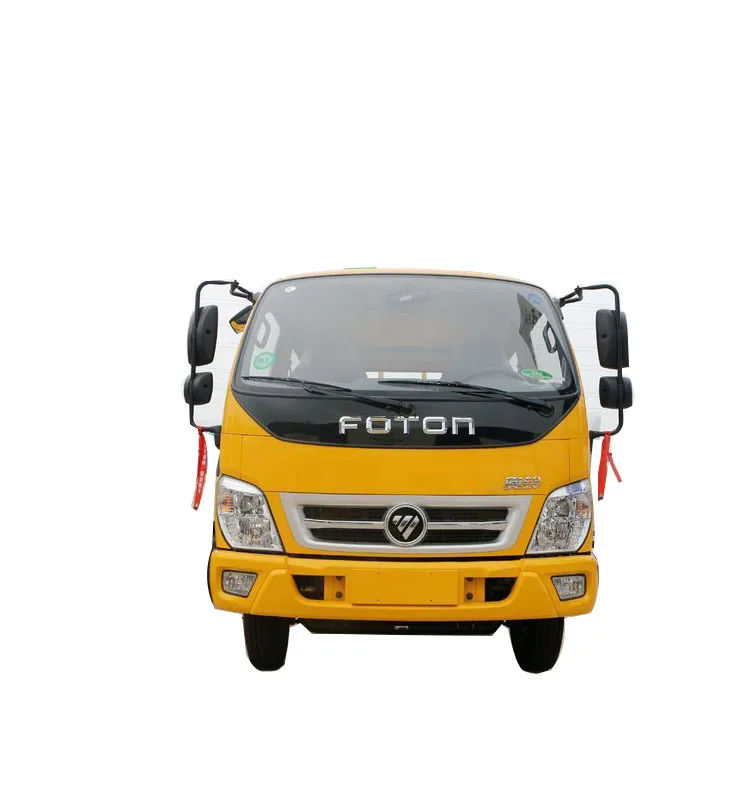

Name | lorry truck | ||
Model | BJ1041V9ADA-A1 | ||
Overall dimension | 5995MM*2000***2320MM | ||
Van dimension | 3220MM*1900MM*400MM | ||
Gross weight | 4495KG | ||
Curb weight | 2.565KG | ||
Max payload | 1-5 TON | ||
Chassis brand | FOTON /DONGFENG optional | ||
Drive type | Left/right hand drive (optional) | ||
Drive form | 4X2 | ||
Transmission | Manual,5 forward gears,1 backward gear | ||
Cab | Double row cab ;5 passengers ;with air-condition | ||
Tire | 6.50R16/ 7.50R16 /6pcs 8.25R16 8PR | ||
Rear axle speed ratio | 6.142 | ||
Air cylinder | 4 | ||
Wheelbase | 3360mm | ||
Fuel type | diesel | ||
Engine model | 4J18TC3 | ||
Engine type | Vertial type;in-line engine;water -cooling;four-stroke | ||
Displacement | 2.27ML | ||
Rated power | 65KW/H | ||
Horse power | 110HP | ||
Torque | 280N.M | ||
Max torque rotate speed | 1700-2300RPM | ||
Braking system | Air brake,ABS optional | ||
Electrical system | 24 voltage,7 wire harness,LED lights | ||
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||
