Function

Loading stone , ore , sand etc

Volume

10 CBM

Characteristics

middle lifting system or Front lifting system

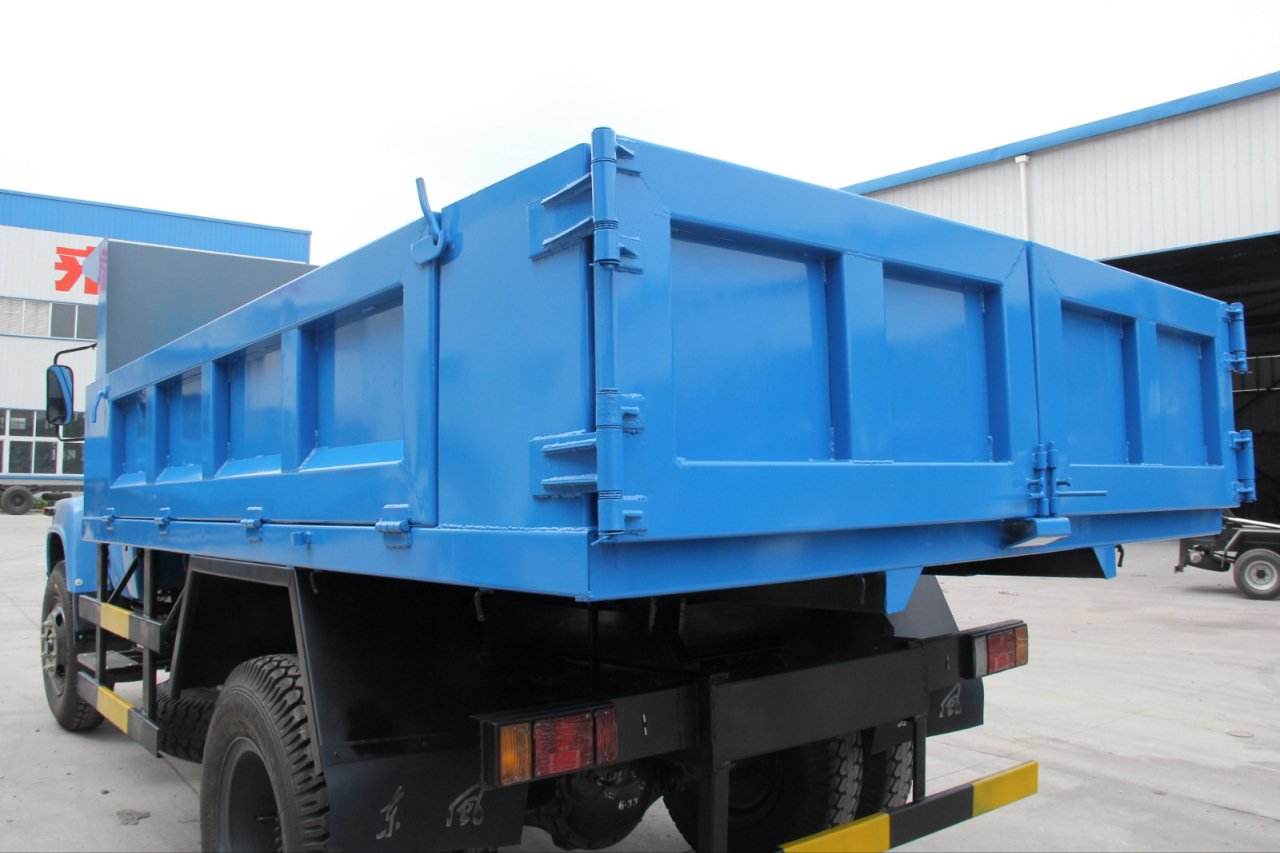

Cargo box

4800*2300*1000mm

cab

DONGFENG 140 chassis , one row, without A/C

Transmission

Manual , F 5+1 R gears .

fuel type

diesel

driving

Left hand driving

driving model

4*2

Steering form

steering wheel with PTO

Number of tire

6 +1

wheel base

4200mm

Tire

10.00-20

Emission standard

Euro3

Horse Power

160HP

Number of axle

2

Axle load (kg)

3.6T/8T

Chassis size(L*W*H)

6950×2450×3050MM

Max speed

95 km/h

Engine brand

YUCHAI , YC4E160-33

Braking system

AIR brake ,without ABS

Air-conditioner

with

Displacement

3760ml

Rated output

118kw

Color

Optional

Remarks

As customer 's request
