Trailer name

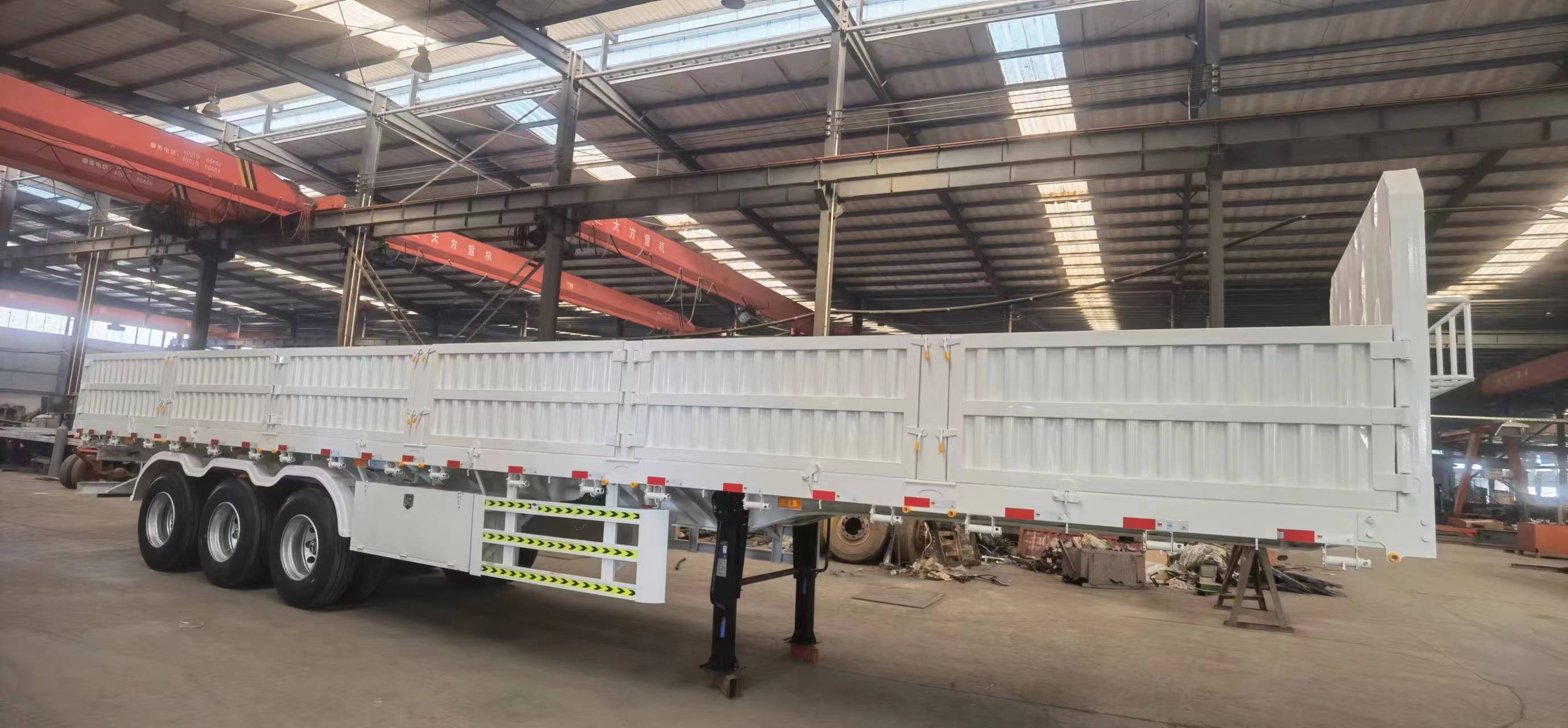

Fence semi trailer

Function

Load and unload GOODS.

Overall dimensions: (mm)

40ft platform container semi trailer dimension

13300*2600*3100mm

Design left side door +right side door+rear back door

Container lock

Install 12units container lock

Max payload(kgs)

50TONS

Curb weight reference (kgs)

8000KG

Platform

2.5mm steel checkered plate

Main Beam

The height of the beam is 500mm,

upper plate is 14mm,

middle plate is 8 mm,

down plate is 16mm.

Side Beam

160mm channel steel

Axle

16TONS made in China

Axle Number

3 pieces

tyre

12R22.5 /13 sets

Number of Tyre

13 units include 1 spare tyre

FENCE

400MM+400MM Active link, can be removable

Kingpin

interchangeable 90#

Leaf spring

90mm*13mm*10pieces/6sets

Landing gear

28T Made in China

suspension

mechanical suspension

Diesel Tank

1 standard (customer can request )

Tool box

1

Braking system

without ABS system

Electrical system

24 voltage

7 ways(7 wire harness)

Light

LED type

Packing

Nude

Painting

color WHITE
