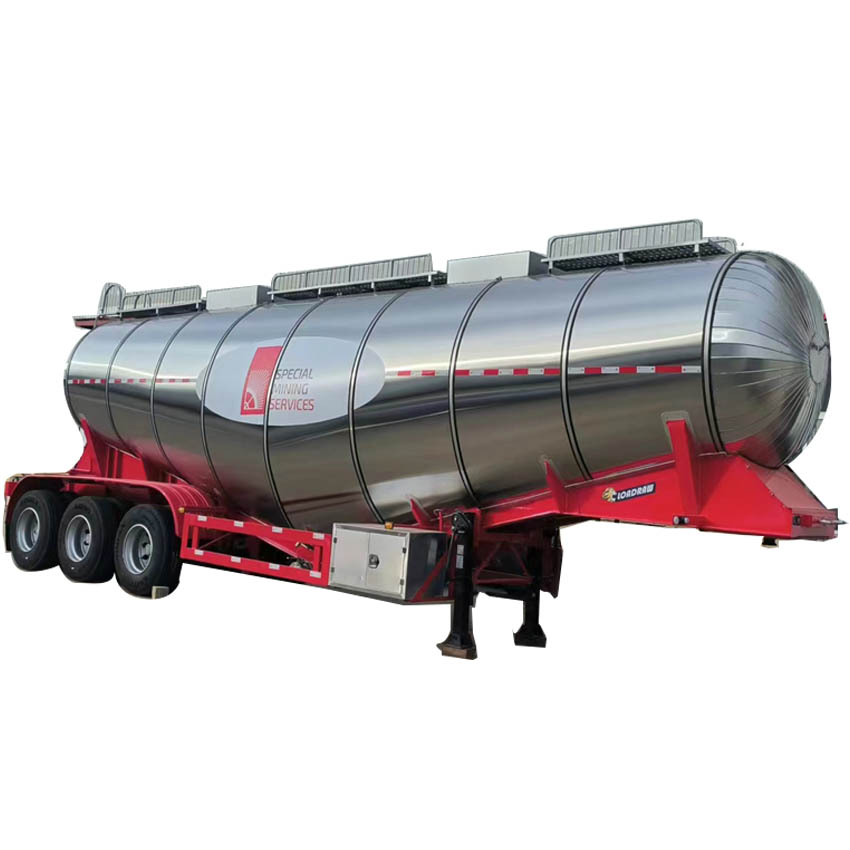

| 35CBM CHEMICAL EMULSION TANKER SEMI TRAILER | |||||||||
| Trailer Model | QLG9403GRYA | ||||||||
| Function | 35CBM chemical emulsion tanker semi trailer | ||||||||
| Overall dimensions: (mm) | 10800*2500*3800 mm | ||||||||
| Max payload(kgs)最大载重 | 40000 kgs | ||||||||
| Curb weight(kgs)自重 | 9900 kgs | ||||||||
| Tanker capacity | 35CBM | ||||||||
| Tanker shape 罐体形状 | Like cement semi trailer ,“V” 型 “V”radian 15 ° | ||||||||
| Tanker heat preservation material 罐体保温材料 | 80mm thickness PU（Polyurethane） 聚氨酯 | ||||||||
| Heat preservation covering material 保温覆盖材质 | Stainless steel ,0.55mm thickness 0.55mm厚不锈钢 | ||||||||
| Tanker bottom heating trough material 罐底加热槽材料 | Carbon steel/ 4 unit Heating Transfer groove number | ||||||||
| Load tanker emulsion temperature 装载乳胶温度要求 | ≦95℃ | ||||||||
| Manhole cover 人孔盖 | Diameter: 450-500mm (2 pieces),reinforced by factory, #304 stainless steel | ||||||||
| Main Beam 大梁 | Middle plate 10mm,down plate is 16mm,Q345 Carbon steel 中间10mm,下16mm,Q345 锰钢材质 | ||||||||
| Tanker body罐体 | 304 stainless steel Tank Body is 6mm,The front and end plate head is 6mm, baffle is 5 mm | ||||||||
| Tanker baffle 隔板 | 5 piece/ Tanker baffle gross hole diameter size:400mm | ||||||||
| Discharge valve 卸料阀 | 1 unit,install at the tanker bottom / diameter:3inch | ||||||||
| others | Bottom water hole:4 unit,install at the tanker bottom Breather Valve position:Middle of the Tanker top Thermometer:1 unit,Install at the front plate head | ||||||||
| RUNNING CONSTRUCTION | |||||||||
| Axle 车桥 | 13T made in China / 3 pieces | ||||||||
| tyre 轮胎 | 12R22.5 / 12 pieces | ||||||||
| rim 钢圈 | 9.0/ carbon steel /12 pcs | ||||||||
| Kingpin 牵引销 | interchangeable 50# & 90# (bolts type) 螺母型 | ||||||||
| Leaf spring 板簧 | 90mm*10mm*13pieces/6sets 6架（宽90mm,厚10mm,13片） | ||||||||
| Landing gear 支腿 | 28T Made in China | ||||||||
| suspension 悬架 | Mechanical suspension-American type 美式悬架 | ||||||||
| Ladder 爬梯 | manual type | ||||||||
| Braking system 刹车系统 | without ABS system made in china | ||||||||
| Electrical system 电路系统 | 24 voltage | ||||||||
| 7 ways(7 wire harness) | |||||||||
| Light 灯光 | LED type | ||||||||
| Packing 包装 | Nude,Polish with Wax before Shipment | ||||||||
| Painting 喷漆 | color optional | ||||||||
| Remark 备注 | 1.Tool box:1 unit factory standard 2.Fire extinguisher:2 units;8kg/unit 3.Spare wheel carrier:1 piece. The above mentioned data is for your reference only.The detailed specification will be subject to our final confirmation. | ||||||||
